Standard Models

CF Series

« » To view remaining content of following table, please slide it left-right.

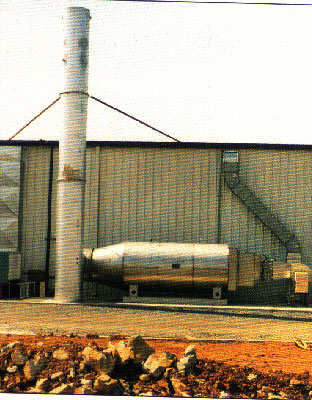

The CF Series are dedicated fume incinerators for thermal treatment of up to 10,000 SCFM of organic contaminated waste streams. These incinerators incorporate natural gas "grid" burners for maximum thermal efficiency. All incoming fumes pass through the burner assembly thereby eliminating by-passing of combustable contaminants and assuring complete oxidation of all organics. Auxiliary fuel input is fully modulated to meet incineration temperature requirements while effectively utilizing the heating value of the waste materials. Optional equipment includes stainless steel air cooled castings and various types of waste heat recovery equipment.

Model

Capacity

Diameter

Length

Weight

NO.

SCFM

D

L

LBS.

CF 48

CF 60

CF 72

CF 84

CF 96

1000

2500

5000

7500

10000

4'-0"

5'-0"

6'-0"

7'-0"

8'-0"

8'-0"

8'-0"

12'-0"

12'-0"

16'-0"

3000

5000

10000

15000

25000

HR Series

The HR series is designed to handle up to 250 pounds per hour of Type 0 - 4 Solid Waste. It is particularly well suited for pathological waste applications in hospitals, laboratories and other facilities that require on-site disposal of waste where limited space is available for disposal equipment. The HR Series incorporates primary and secondary chamber technology in a retort design with a unique "hot hearth" configuration for uniform heat distribution. Optional equipment available includes modulating dual fuel burners, automatic charging systems and special stack arrangements for a custom tailored installation to suit individual customer requirements or limitations.

« » To view remaining content of following table, please slide it left-right.

Model

Capacity

Length

Width

Height

Weight

NO.

LBS/HR

L

W

H

LBS.

HR 50

HR 100

HR 200

HR 300

50

100

200

250

4'-6"

5'-6"

6'-6"

7'-6"

3'-4"

3'-4"

5'-0"

5'-0"

5'-6"

5'-6"

6'-6"

6'-6"

8000

10000

15000

17000

high temperature treatment equipment

HC Series

The HC series is specifically designed for Type 0 - 4 Solid Waste and includes automatic loading and ash removal systems. The horizontal ignition chamber features a cascading design enhanced by stoker rams to continually move the waste material and ash through the system for efficient and thorough destruction of combustables. The large afterburner chamber provides long retention time and low velocity for complete oxidation and settling of particulate material. All burners are fully modulating with high turndown for maximum efficiency. Optional air cooled casings, waste heat recovery systems and various flue gas cleaning equipment or scrubbers are available.

« » To view remaining content of following table, please slide it left-right.

Model

Capacity

Length

Width

Height

Weight

NO.

LBS/HR

L

W

H

LBS.

HC60-2

HC72-5

HC84-5

HC96-10

HC96-15

HC96-20

250

375

500

750

1000

1500

17'-0"

23'-0"

25'-0"

30'-0"

35'-0"

40'-0"

7'-0"

8'-0"

8'-6"

10'-0"

10'-0"

10'-0"

11'-0"

12'-0"

15'-0"

17'-0"

17'-0"

17'-0"

25000

40000

60000

90000

110000

140000
